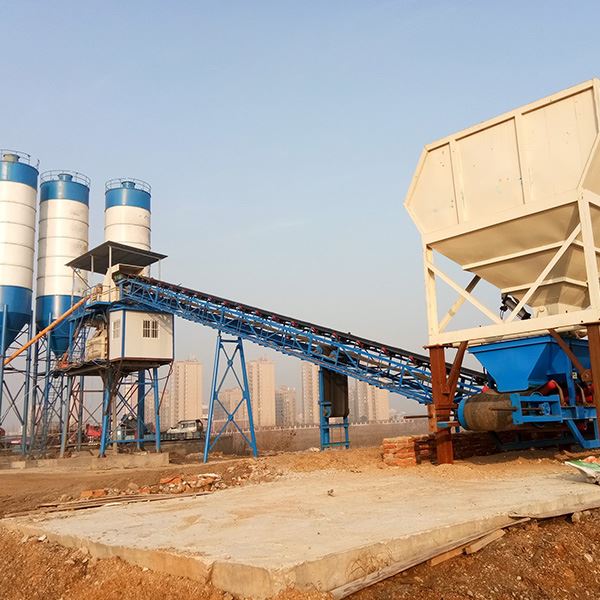

60m³/H ready mix concrete batching plant
1. The structure design of the mixing station is heavy and stable to reduce the shaking of the scale;
2, Modular design, save container space, only 3-5 days to install;
3、Accessories conforming to international standards（WAM/SICOMA/BHS/ABB/Siemens/Schneider）,you can buy it anywhere.
4, The concrete mixing station can work 7*24 hours;
5,The control software high degree of automation, lifetime free upgrade.
6. The pulse dust collector removes redundant dust removal and secondary use of waste concrete.
Jinheng Machinery is a technology company focusing on the research and development of ready mix concrete batching plant technology and has provided technical support to 103 batching plant factories in China. A special three-in-one concrete, mortar, and water stabilizer mixing equipment have been developed for China's railways, highways, and bridges. It has the characteristics of high output (high-grade concrete), stable equipment, and few personnel. The railway concrete transportation system intelligently connects the ready mix concrete batching plantand the concrete production equipment. We can provide customers with customized development and personnel training output services for concrete mixing plants, as well as technical services for stationary ready mix concrete batching plant in other countries/regions.
HZS60 ready mix concrete batching plant
HZS60 ready mix concrete batching plant | 60m3/h |
Mixer model | JS1000 |
Stirring power | 2×18.5kW |
cycle time | 60s |
Maximum aggregate particle | Φ80mm |
Powder silo | 2×80t |
batching plant | 1600L |
Bone silo capacity | 3×12m3 |
Aggregate type | 3 |
Aggregate belt conveyor | 300t/h |
screw conveyer | 80t/h |
Unloading height | 3.8m |
total powe | 130kW |
1. MIXER MACHINE
A. The design of the triple closed shaft end sealing device can effectively eliminate the slurry leakage;
B. Blades, liners, and stirring arms are all alloy wear-resistant materials, and their service life exceeds national standards;
C. The mixing drum is designed with large space and a small volume ratio. The spacious space makes the mixing more energy-saving.
2. Batching machine
A. Modular quick installation structure makes installation, production, and transportation more convenient and faster.
B. Vertical measurement method, high precision of coarse and fine ingredients;
C. Warehouse and steel structure can be freely configured according to site and customer needs;
3. Aggregate belt conveyor
A. The standard section frame of the high section truss has good rigidity;
B. Material conveying is sealed, dustproof, anti-falling design, environmental protection;
C. Two-way walking platform and safety handrails are convenient for maintenance and repair;
D. Nylon inner belt, long service life;
E. Hanging roller assembly, automatic correction, low noise;
4. Weighting system
Answer: The measuring components are all international brands, with high reliability and strong anti-interference ability;
B. Prepare materials through rough and fine ingredients, and measure the vibration and discharge of the discharge door with high precision
C. Two optional preset measurement control schemes.
5. Electrical control system
A. Adopt industrial computer, open design, support networking function;
B. Friendly interface, flexible operation, powerful function, safe and efficient;
C. Manual ingredients can be recorded;
D. Scientific production, logical organization, reduce operating costs on the basis of the same output
