Hey there! I'm a supplier of concrete plants, and today I wanna chat about the tests carried out in the laboratory of a concrete plant. These tests are super important as they ensure the quality and performance of the concrete we produce. So, let's dive right in!
Fresh Concrete Tests
Slump Test
One of the most common tests for fresh concrete is the slump test. This test measures the consistency or workability of the concrete. We take a slump cone, fill it with fresh concrete in three layers, and then tamp each layer a specific number of times. After that, we lift the cone vertically, and the concrete will slump. The amount of slump tells us how easy it is to work with the concrete. If the slump is too low, the concrete might be too stiff and hard to place. On the other hand, if the slump is too high, the concrete could be too runny and might not hold its shape properly.
Air Content Test
The air content in concrete is crucial because it affects the durability of the concrete, especially in freeze - thaw conditions. We use an air content meter to measure the amount of air in the fresh concrete. By adding air - entraining agents, we can control the air content. A proper amount of air in the concrete creates tiny air bubbles that act as expansion chambers when the water in the concrete freezes, preventing the concrete from cracking.
Temperature Test
The temperature of fresh concrete also matters a lot. If the concrete is too hot, it can set too quickly, which might cause problems during placement and finishing. Conversely, if it's too cold, the curing process can be slowed down significantly. We use a thermometer to measure the temperature of the fresh concrete right at the mixer or on - site. Usually, we aim for a temperature between 10°C and 32°C for optimal performance.
Hardened Concrete Tests
Compressive Strength Test
This is probably the most important test for hardened concrete. Compressive strength determines how much load the concrete can bear. We cast concrete cylinders or cubes during the batching process and cure them under standard conditions. After a specific curing period (usually 7, 14, or 28 days), we test these specimens in a compression testing machine. The results of these tests help us ensure that the concrete meets the design requirements for the project.
Flexural Strength Test
In some cases, like for pavements or slabs, the flexural strength of concrete is also important. Flexural strength measures the ability of the concrete to resist bending. We use a beam - shaped specimen and test it in a flexural testing machine. This test is crucial for structures that are subjected to bending loads, such as bridge decks.
Water Permeability Test
Water permeability is a measure of how easily water can pass through the concrete. High water permeability can lead to problems like corrosion of reinforcement and freeze - thaw damage. We use different methods to test water permeability, such as the rapid chloride permeability test (RCPT). This test gives us an idea of how well the concrete can resist the ingress of water and harmful substances.
Aggregate Tests
Sieve Analysis
Aggregates are a major component of concrete, and their particle size distribution is very important. We perform a sieve analysis to determine the gradation of the aggregates. We pass the aggregates through a series of sieves with different mesh sizes and measure the amount of material retained on each sieve. A well - graded aggregate ensures good workability and strength of the concrete.
Specific Gravity and Absorption Test
The specific gravity and absorption of aggregates affect the water - cement ratio and the workability of the concrete. We measure the specific gravity by weighing the aggregate in air and then in water. The absorption is determined by soaking the aggregate in water for a specific period and then weighing it again. This information helps us adjust the mix design to achieve the desired properties of the concrete.
Cement Tests
Fineness Test
The fineness of cement affects its hydration rate and the strength development of the concrete. We use a sieve or a Blaine air - permeability apparatus to measure the fineness of the cement. A finer cement generally has a faster hydration rate and can lead to higher early - age strength.
Setting Time Test
The setting time of cement is important because it determines the time available for placing and finishing the concrete. We use a Vicat apparatus to measure the initial and final setting times of the cement. This test helps us ensure that the concrete has enough time to be properly placed and consolidated before it starts to harden.

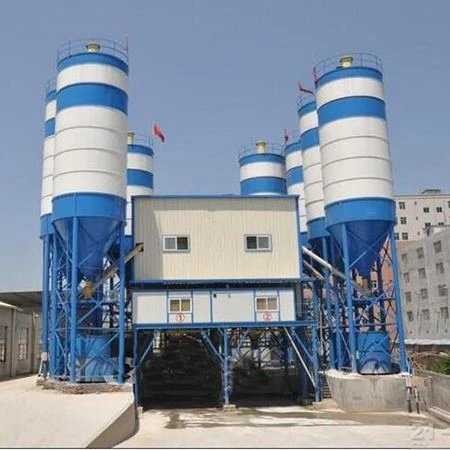

As a concrete plant supplier, we offer a wide range of high - quality concrete plants, including the Compact Batching Plant and the Ready Mix Concrete Batch Plant. These plants are designed to produce concrete that meets all the necessary quality standards. And if you're interested in the prices, check out our Concrete Batching Plant Price List 2025 – High Quality & Affordable Options.
If you're in the market for a concrete plant or have any questions about the tests and the quality of the concrete, don't hesitate to reach out. We're here to help you make the right choice for your project. Whether you're building a small residential structure or a large commercial building, our concrete plants can provide you with the reliable and high - quality concrete you need.
References
- "Concrete Technology" by A.M. Neville
- "Standard Test Methods for Concrete" by ASTM International
