A tower batching plant, also known as a vertical concrete batching plant or tower-type concrete batching plant, is a type of concrete mixing facility where the various components of concrete are stored, weighed, and mixed in vertical silos or compartments. This design allows for efficient space utilization, making it suitable for projects with limited horizontal space. Here are the key components and features typically associated with a tower batching plant:

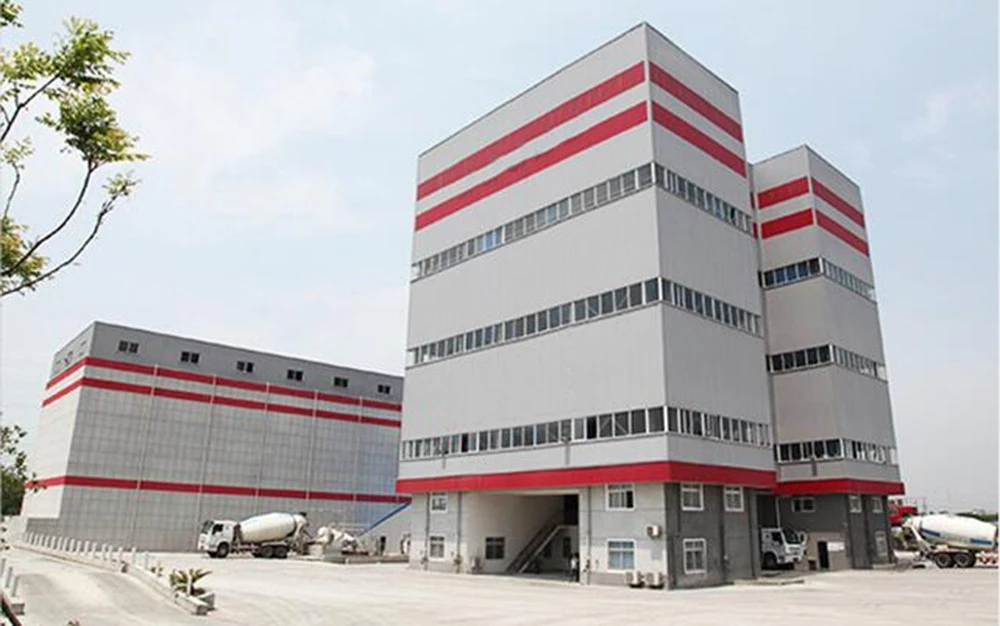

batch equipment for concrete

Aggregate Bins:

Storage bins for different sizes and types of aggregates, such as sand, gravel, and crushed stone. In a tower plant, these bins are often arranged vertically.

Conveyor System:

A vertical conveyor system that transports aggregates from the lower bins to the higher mixing level.

Weighing System:

Precision weighing systems for aggregates, cement, water, and any additives or admixtures to ensure accurate batching.

Cement Silos:

Vertical cement silos for bulk storage of cement, often positioned above the mixing area. Cement can be dispensed from these silos directly into the mix.

Water and Additive Systems:

Systems for measuring and dispensing water and any necessary additives or admixtures into the mix.

Central Mixer:

The central mixer, which is often located at the top of the tower, is a key component where all the ingredients are combined and thoroughly mixed. Different types of mixers can be used, such as twin-shaft mixers, planetary mixers, or others.

Control Panel:

A centralized control panel with an interface for monitoring and controlling the entire batching process. It allows operators to set parameters, adjust mix designs, and oversee production.

Batching Software:

Advanced software for programming and managing different mix designs, providing flexibility in producing various types of concrete based on project specifications.

Batching Plant Automation:

Automation features, often driven by programmable logic controllers (PLCs), for precision and efficiency in the batching process.

Aggregate Heating System (optional):

In cold weather conditions, some tower batching plants may include systems for heating aggregates to maintain the desired mix temperature.

Dust Collection System:

A system that collects and filters dust generated during the batching process to comply with environmental standards.

Emergency Stop and Safety Features:

Safety features, such as emergency stop buttons and interlocks, ensure safe plant operation.

Tower batching plants are suitable for a variety of construction projects, especially when space is limited horizontally. The vertical arrangement of components allows for efficient use of space while maintaining the production capacity required for larger projects. As with any concrete batching plant, considerations such as production capacity, mix design flexibility, and the overall efficiency of the batching process are important factors when choosing a tower batching plant for a specific project.

Parameters of tower batching plant

Model	HZS60	HZS90	HZS120	HZS180
Theoretical capacity(m³/h)	60	90	120	180
Mixer model	JS1000	JS1500	JS2000	JS3000
Storage hopper capacity(m³)	4*10	4*15	4*20	4*25
Batching power(kW)	2*18.5	2*22	2*37	2*45
Aggregate accuracy(%)	+2	+2	+2	+2
Cerement accuracy(%)	+1	+1	+1	+1
Water accuracy(%)	+1	+1	+1	+1
Fly ash accuracy(%)	+1	+1	+1	+1
Additive accuracy(%)	+1	+1	+1	+1
Total power(KW)	120	150	190	220
Discharging height(mm)	3800/4200	3800/4200	3800/4200	3800/4200

Our Products

Modular design, reduce shipping costs and installation time

Adopt fine weighing system, automatic learning complement and buckle weighing

Digital Visual Management System to reduce staff

Our advantage of tower batching plant

Heavy duty chassis

Reduce shaking during work and achieve more accurate weighing

Finished product bin

Reduce discharging time and increase productivity by 15%

QQ20231214122049

Pre installed pipeline

Galvanized pipes to reduce installation cycle

control system

Provide three-year free upgrade and support remote services
