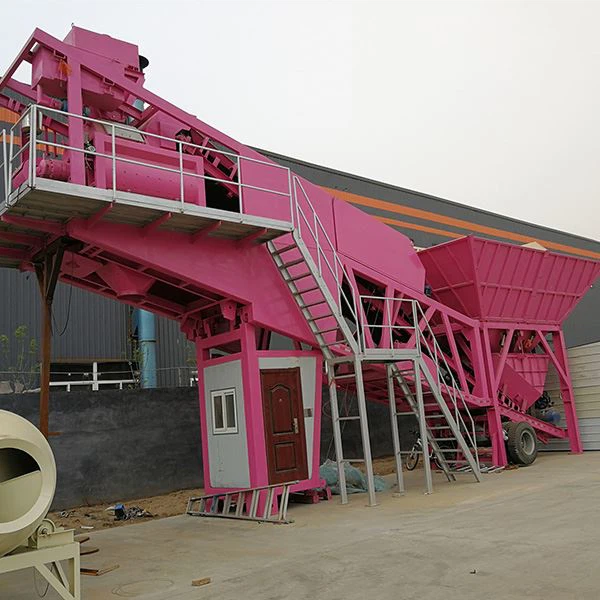

Mini mobile concrete batching mixing plant

Our mini mobile concrete batching mixing plant combines mobility, production capacity, and complete supporting equipment, which will not delay construction time. Unlike the stationary concrete batching plant, the mobile type must first have an additional tractor for transportation.

Advantages for mini mobile concrete batching mixing plant

1. The whole set of equipment has a compact structure, so that loading, weighing, mixing, and other processes are concentrated on the trailer unit;

2. The man-machine interface is simple and clear, the work is stable and reliable, and it is very suitable for various harsh environments;

3. It adopts a double-horizontal powerful mixer, with strong continuous working ability, uniform and fast mixing, suitable for the requirements of multi-line and long-point concrete construction.

4. Small footprint and quick installation. Installation can be completed and put into use within 2-3 days, and convenient disassembly can be completed within 1 day.

Mini mobile concrete batching mixing plant

1. Blender

In the JS mixing barrel, the dual-axis dual-start mode has a strong mixing capacity and is suitable for mixing concrete materials with various characteristics.

2. Batching machine

The PLD batching machine can provide feed aggregates that meet the needs.

The weighing hopper , which is sent to the mixing host through a belt conveyor, which is suitable for the ingredients of two kinds of aggregates.

The mixing ratio has a sensor link with the control room to ensure that the weighing accuracy of the aggregate is less than or equal to 2%, which determines the mixing quality.

3. Belt conveyor

The frame is a truss structure connecting the mainframe and the aggregate batching frame and can form the main body with the entire workstation without disassembly.

4. Control room

The control room is located on the other side of the frame and is installed under the mixer, which can easily observe the entire weighing and feeding process. The control room adopts a microcomputer control system for automatic feeding. After completing the ratio setting, the mixed frequency rating is completed

5. The entire tray

The overall tray is the basic structure of the  mini mobile concrete batching mixing plant. It has the same theme structure as the  fixed mixing plant, but the latter is different. The latter requires additional construction, while the former does not need it because of its mixer and control room. , Weighing units, etc. are all placed on the entire pallet, which is equipped with wheels or trailers to realize the movement of the workstation.
