Global Concrete Batching Plant
Introduction

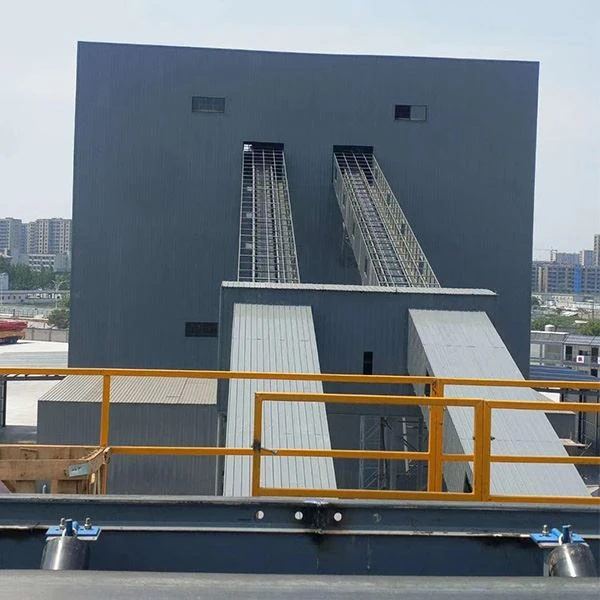

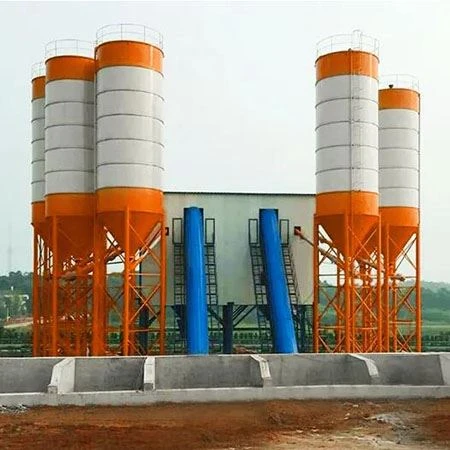

The global Concrete Batching Plant is a high degree of fusion of modern mixing technology, environmental protection technology, information intelligence technology, and urban art. The powder storage tank is on top of the equipment, so the floor space can be reduced. The short screw design can speed up the batching speed and reduce the failure rate. At the same time, because various processing institutions are concentrated in the main building, the overall aesthetics of the equipment has also been improved. In addition, all kinds of emissions (gas, liquid, solid) and noise in the production process are in line with national standards, so they are also in line with the development requirements of environmental protection. This global concrete batching plant not only solves the pollution problem but also improves the material utilization rate.
Advantages
1. The global Concrete Batching Plant has a concrete structure below the main floor, which has a large internal space and has the function of heat insulation and noise reduction. The air compressor and air mixing box are neatly and beautifully placed in the main building.
2. The length of the screw conveyor is only 3 meters, the inclination angle is 10°, and the power is 11KW, which not only saves power loss but also reduces the failure rate. Air ducts can also be used to replace propellers. The propeller is maintenance-free for life, more energy-saving, and more environmentally friendly.
3. The top structure of the powder storage tank occupies a small area and adopts a centralized environmental protection design, which can reuse waste.
4. The automatic control system of the 2022 new global Concrete Batching Plant can realize one computer and one set of software to control two sets of mixing plants, thus saving the cost of operators.
Technical specification
Model | HZS180 | HZS240 | HZS270 |
Theoretical capacity（m³/h） | 180 | 240 | 270 |
Mixer Model | JS3000 | JS4000 | JS4500 |
Power（kW） | 55x2 | 75x2 | 75x2 |
Discharging Volume(L) | 3000 | 4000 | 4500 |
Aggregate size (mm) | ≤80 | ≤80 | ≤80 |
Batching station (semi-ground warehouse-type) | 30x4 | 30x4 | 30x4 |
Conveying capacity | 600(t/h) | 600(t/h) | 900(t/h) |
Weighing range and accuracy | Weighing range and accuracy | Weighing range and accuracy | Weighing range and accuracy |
Stone scale（kg） | （1200-3600）±2% | （1600-4800）±2% | (1800-5400）±2% |
Sand scale（kg） | （800-2400）±2% | （1050-3200）±2% | （1200-3600）±2% |
Mud scale（kg） | （600-1800）±1% | （800-2400）±1% | （900-2700）±1% |
Grayscale(kg) | （200-600）±1% | (250-800）±1% | （300-900）±1% |
Water scale（kg） | （250-800）±1% | （400-1200）±1% | （400-1200）±1% |
Additive scale （kg） | (25-80）±1% | （40-120）±1% | （40-120）±1% |
Total volume without conveyor | 200KW | 265KW | 265KW |
Discharge height（m） | 4.2 | 4.2 | 4.2 |
