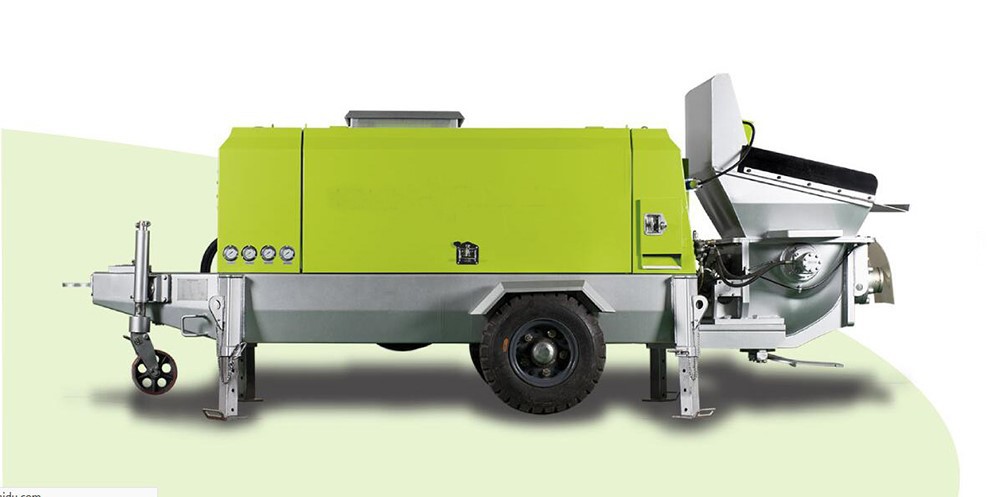

Trailer Concrete Pump
Jinheng Trailer Concrete Pump is an S-shaped pipe valve pump that delivers aggregates with a diameter of 40mm. This equipment is mainly used for concrete construction in railways, highway tunnels, bridges and culverts, hydropower, mines, high-rise buildings, and other projects. It greatly improves the construction efficiency of engineering buildings, saves labor costs, shortens the construction period, and expands economic benefits.
In order to meet different engineering needs, Jinheng has developed various Trailer Concrete Pump to provide customers with diverse choices.
According to power, it can be divided into electric pumps and diesel pumps.
According to the pumping capacity, it can be divided into 30 pumps, 40pumps, 60 pumps, 80 pumps, etc. As the name suggests, pumping 30 to 80 cubic meters per hour. Among them, 30 small drag pumps and 40 small drag pumps are more suitable for small and medium-sized projects such as rural housing construction.
According to the diameter of the pumped aggregate, it can be divided into fine aggregate pumps and large aggregate pumps. The fine stone pump can pump aggregates with a maximum particle size of ≤ 30mm. Large aggregate pumps can pump aggregates with a maximum particle size of ≤ 40mm.
According to the usage scenario, trailer type Trailer Concrete Pump can also be divided into tunnel specific pumps, high-speed bridge specific pumps, etc. Therefore, we suggest that you send us your engineering pumping requirements before consulting the price, so that we can provide you with detailed technical services as soon as possible.
The pumping work of Jinheng trailer Trailer Concrete Pump is coordinated by seven Mnemonic major system. All machine parts are manufactured by world-class brands, and the quality details of Duswell are evident!
Power system: The main oil pump is imported from Kawasaki Corporation in South Korea. The original Bosch Rexroth main oil pump is used for 60 or more pumps. The diesel pump adopts Weichai diesel engine.

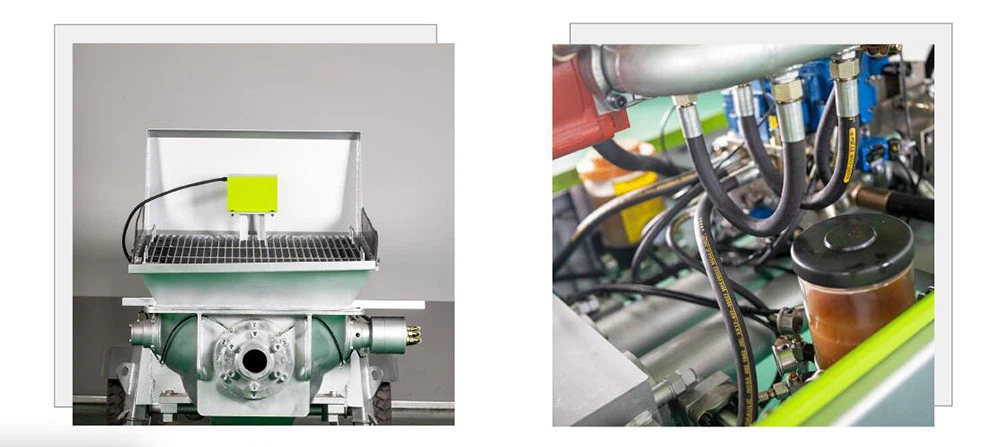

Main pumping system: hydraulic oil circuit open circuit. Adopting well-known brand main oil pump and concrete conveying cylinder.
Distribution system: brand rotating cylinder, nested S-pipe valve. The 8-shaped plate and cutting ring are made of special wear-resistant materials.
Mixing system: The sales cement pump truck adopts high-quality mixing motors and pedal type ultra wear-resistant mixing blades. After left and right half axis treatment, the hardness reaches HB250-280, the surface nitride thickness is greater than 0.3mm, and the surface hardness is greater than HV550.
Heat dissipation and filtration device: using well-known Chinese brand oil filters. The filtration accuracy of the main pump oil filter is 100 μ M. The cooler adopts airline products, with reliable quality and good heat dissipation effect.
Hydraulic pipeline and valve group: The oil pipeline from Manuli Company in Italy is used. The hydraulic control valve adopts the hydraulic control valve of Taiwan Yuken Company.

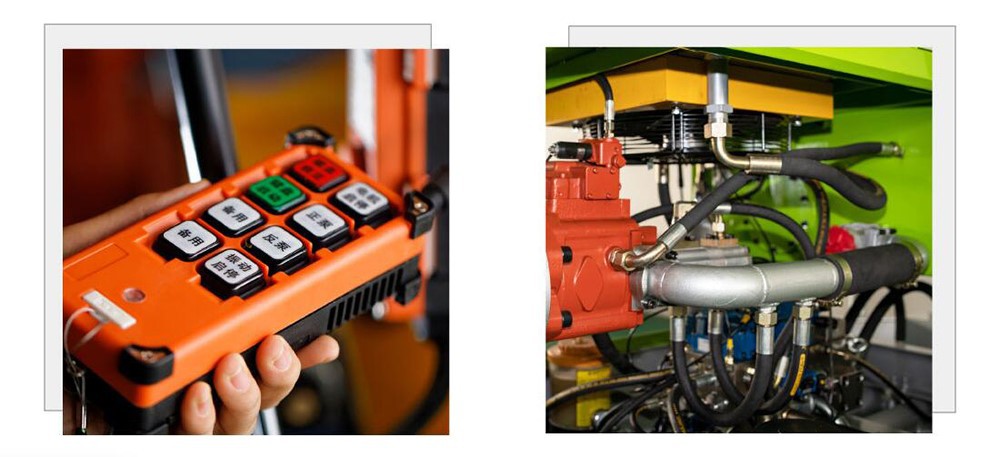

Electronic control system: the intermediate relay of Omron Company in Japan is adopted. Use well-known proximity switches.
