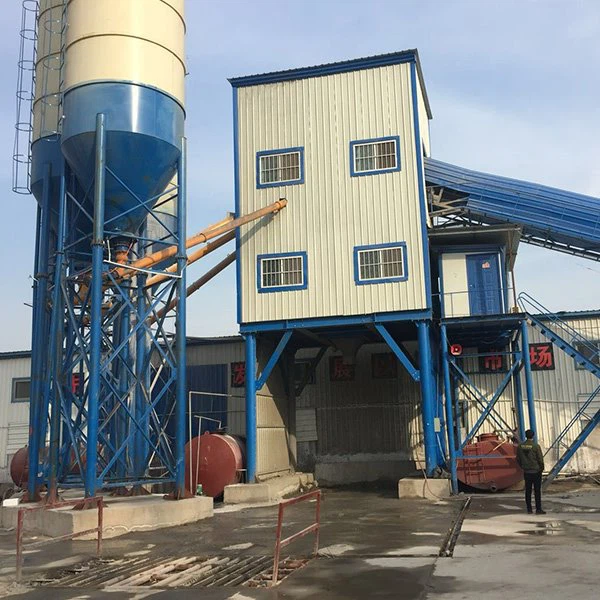

60cbm Fixed Concrete Mixing Station with Sicoma Mixer
Our Cement Batching Plant, Concrete Batch Mix Plant, Mixer Batching Plant has the advantages of competitive price, stable and reliable quality, perfect supporting after-sales service. Our aim is to provide customers with the most complete inspection system and the most suitable solutions, and to meet customer needs to the greatest extent. Our company has formed lean production concept of international enterprises and other first-class successful production operation management mode, which makes us stand out in the market competition. We have built a reliable reputation among many customers. We will continue to develop, to provide the high-quality products and services, and promote lasting cooperation with our customers and create a better future.
Description
The portable concrete mixing plant is a new type of mixing plant developed by our company. On the premise of meeting the output and quality of cement concrete mixing, it can realize rapid installation, flexible movement and convenient relocation. It is especially suitable for various roads, bridges, dams, airports, power and other mobile sites and construction production bases. During the construction of highway and high-speed railway projects, construction equipment often moves with the progress of the project, and this product can do so. At the same time, with the improvement of environmental protection requirements, the demand for fast transfer, modularization, generous and high environmental protection concrete mixing plants is imminent.
Features
1. The portable concrete mixing plant is compact and reasonable. Most functions are completed on the chassis, which integrates weighing, lifting and stirring.
2. Both are steel structures, which are very durable and can be easily disassembled and assembled into pieces.
3. The installation is fast. It only takes three days for the first installation and one day for the transfer station installation.
4. Water, electricity, gas and other pipelines have been installed and equipped with quick connectors for external connection.
5. The main body of the equipment adopts a box type fully enclosed structure, and the conveying, metering, mixing and other parts are sealed inside the equipment to prevent the dust and noise generated during operation from causing adverse effects on the environment.
TECHNICAL PARAMETER
portable concrete mixing plant | YHZS50 | YHZS75 | YHZS100 |
Rate of production（m³/h） | 40 | 54 | 72 |
Mixer | JS1000 | JS1500 | JS2000 |
Power（kW） | 18.5x2 | 30x2 | 37x2 |
Aggregate size(mm) | ≤60 | ≤60 | ≤80 |
batching plant（m³） | 10x4 | 10x4 | 10x4 |
Conveyor capacity of belt conveyor(t/h) | 400 | 400 | 450 |
Weighing range and precision | Weighing range and precision | Weighing range and precision | Weighing range and precision |
Stones weighing（kg） | （700-2000）±2% | （1000-3000）±2% | （1300-4000）±2% |
Sand weighing（kg） | （700-2000）±2% | （1000-3000）±2% | （1300-4000）±2% |
Cement weighing（kg） | （200-600）±1% | （300-900）±1% | （400-1200）±1% |
Water weighing（kg） | （60-200）±1% | （100-300）±1% | （130-400）±1% |
Liquid admixture weighing（kg） | （15-50）±1% | （15-50）±1% | （15-50）±1% |
Total power (kW) | 90 | 100 | 120 |
Discharge height（m） | 4.05 | 4.05 | 4.07 |
Nowadays, many of our customers have been satisfied and accepted us, that have achieved satisfactory results and operated accurately. We understand our aims as a responsible manufacturer, and SGS certification enables us to strictly comply with standards.
We are committed to providing quality 60cbm Fixed Concrete Mixing Station with Sicoma Mixer and services through our main business strengths and synergistic development of related industries. Our company is an international supplier on this kind of merchandise. We keep pace with the times and keep pace with the rapid development of science and technology. Our design, quality, service and price are very advantageous at home and abroad.
