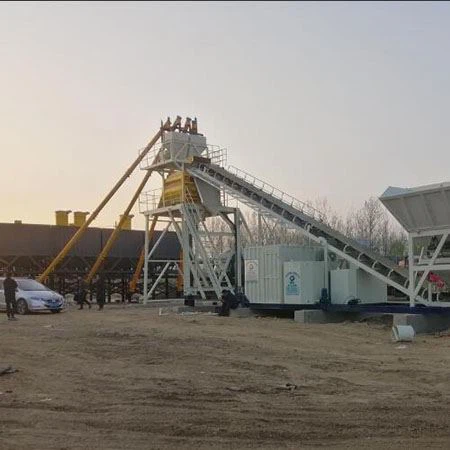

Ready mix plant and central mix plant

The host of ready mix plant and central mix plant adopts JS double horizontal shaft forced mixing host; The batching machine adopts PLD batching machine; The main machine adopts forced double horizontal shaft mixer, which can produce plastic, hard and other kinds of concrete with reliable quality. Aggregates are measured cumulatively or separately by electronic scales, and cement, water and additives are measured accurately by weighing hoppers, with centralized computer control, simple operation, easy adjustment and reliability. The aggregate is fed by bucket lifting. The electrical components have reliable performance and high production power, and are suitable for on-site mass concrete production. JHMIX-50 ready mix plant and central mix plant is commonly used for large and medium-sized water conservancy, power, bridge and other projects with small concrete quantities, long construction period and concentrated construction sites.

Send Inquiry

Product Introduction

Description

The ready mix plant and central mix plant adopts double horizontal shaft mixer, which can produce various kinds of concrete with reliable quality. Aggregates are measured separately by electronic scales, and cement, water and additives are accurately measured by weighing hoppers. The product is centrally controlled by a computer, so it is simple to operate, easy to adjust, and highly reliable. The electrical components of the equipment have reliable performance and large production power, and are suitable for on-site mass concrete production. It is commonly used in large and medium-sized water conservancy, electric power, bridge and other projects with small amount of concrete, long construction period and concentrated construction site.

Features
1. The ready mix plant and central mix plant is designed with wear-resistant technology, which is durable and has a service life of more than 5 times as long as before;
2. Adopt anti leakage technology to ensure the safety of concrete production;
3. The pressure boosting and water unloading technology can easily add or reduce water to ensure the stability of concrete slump;
4. Modular design, high industrialization, fast installation and debugging;
5. Adopt sand free rapid unloading technology, the feeding process is completely closed, environmental protection and pollution-free;
6. The control system is simple to operate, stable and reliable, with continuous production, intelligent alarm and other functions.

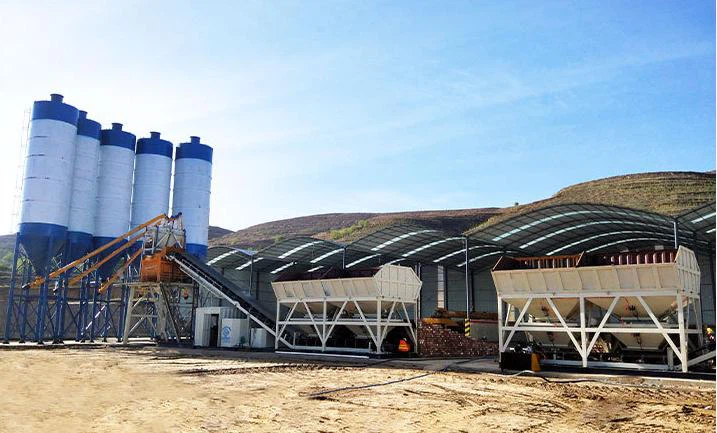

ready mix plant for sale

Model		YZ-B25	YZ-B30	YZ-B50	YZ-B90	YZ-B120
Theoretical capacity		25m³/h	30m³/h	50m³/h	90m³/h	120m³/h
Discharging Volume		500L	750L	1200L	1500L	2000L
Aggregate volume		2x6m³	2x8m³	2x8m³	2x10m³	4x15m³
Measuring range	Aggregate (superimposed measurement)	1500Kg±2%	3000Kg±2%	3000Kg±2%	4000Kg±2%	6000Kg±2%
	powder	500Kg±1%	500Kg±1%	500Kg±1%	700Kg±1%	1000Kg±1%
	water	300Kg±1%	300Kg±1%	300Kg±1%	400Kg±1%	700Kg±1%
	additive	30Kg±1%	30Kg±1%	30Kg±1%	50Kg±1%	50Kg±1%
Aggregate size		≤80mm	≤80mm	≤80mm	≤80mm	≤80mm
Electronic control system		Full-automatic	Full-automatic	Full-automatic	Full-automatic	Full-automatic
Voltage		380v/50Hz	380v/50Hz	380v/50Hz	380v/50Hz	380v/50Hz
Total volume		38KW	50KW	60KW	85KW	120KW
weight		19300kg	21000kg	23500kg	32000kg	51000kg
Drag speed		≤40Km/h	≤40Km/h	≤40Km/h	≤40Km/h	≤40Km/h
Optional item		Cement powder silo, screw conveyor, gravel aggregate feeding system

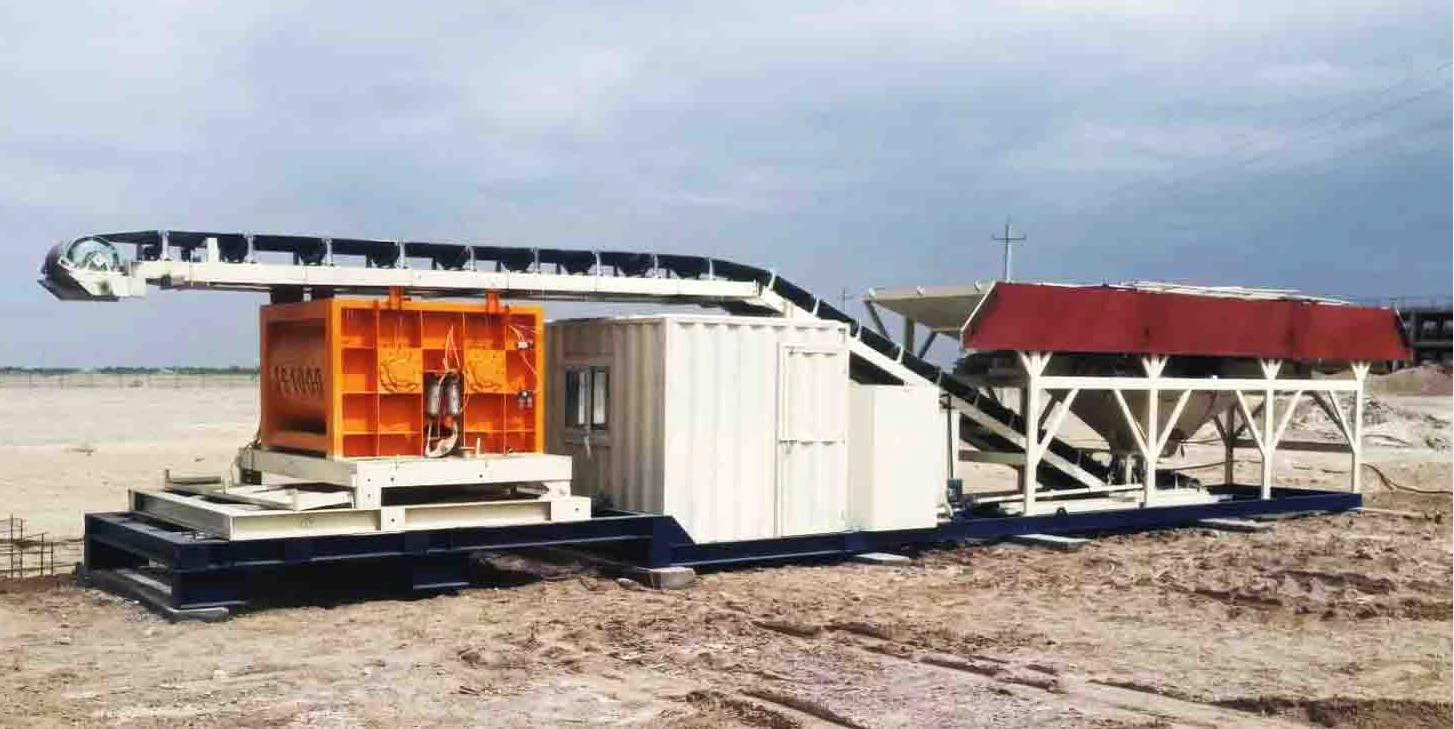

ready mix plant and central mix plant
