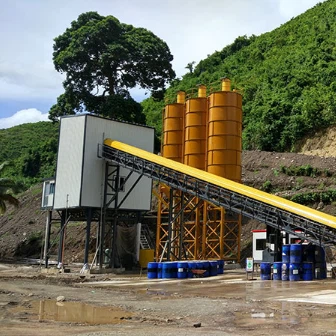

Batch Mix Plant
A batch mix plant, often referred to as a batch plant or batching plant, is a facility that combines various ingredients to form concrete or asphalt in batches. These plants are widely used in construction for the production of ready-mix concrete, as well as in road construction for asphalt production. The key features and components of a batch mix plant include.
Batching System: The batching system is a crucial component that measures and combines the necessary ingredients for the production of concrete or asphalt. These ingredients typically include aggregates (such as sand, gravel, or crushed stone), cement, water, and in the case of asphalt, bitumen.
Mixing System: The mixing system is responsible for blending the ingredients thoroughly to ensure a homogenous mixture. Depending on the type of plant, the mixing can be done in a twin-shaft mixer, a drum mixer, or a pan mixer.
Aggregate Storage Bins: These are containers that store the various sizes of aggregates used in the production process. The aggregates are typically stored in separate bins to maintain their individual characteristics until they are batched.
Cement Silos: Cement silos store the cement until it is needed for the production process. These silos are designed to keep the cement dry and free-flowing.
Water and Admixture Tanks: Batch plants include tanks for storing water and admixtures. Water is a crucial ingredient in both concrete and asphalt production, and admixtures are sometimes added to improve the properties of the mixture.
Control System: Modern batch plants are equipped with sophisticated control systems that automate the batching and mixing processes. These systems ensure accurate measurements, efficient mixing, and consistent quality in the final product.
Weighing System: Each ingredient is carefully measured using a weighing system to ensure the correct proportions in each batch. This contributes to the overall quality and consistency of the produced concrete or asphalt.
Heating System (for Asphalt Batch Plants): In asphalt batch plants, a heating system is often required to heat the bitumen to the appropriate temperature for mixing with the aggregates.
Batch mix plants are versatile and can be designed for different types of concrete or asphalt mixes. They are commonly used in the construction industry for projects of various scales, including residential, commercial, and infrastructure development. The batch process allows for precise control over the mix design and is suitable for applications where specific mix proportions are critical to the performance of the final product.
Parameters of batch mix plant
| Model |
HZS60
|
HZS90
|
HZS120
|
HZS180
|
| Theoretical capacity(m³/h) | 60 | 90 | 120 | 180 |
| Mixer model | JS1000 | JS1500 | JS2000 | JS3000 |
| Storage hopper capacity(m³) | 4*10 | 4*15 | 4*20 | 4*25 |
| Batching power(kW) | 2*18.5 | 2*22 | 2*37 | 2*45 |
| Aggregate accuracy(%) | +2 | +2 | +2 | +2 |
| Cerement accuracy(%) | +1 | +1 | +1 | +1 |
| Water accuracy(%) | +1 | +1 | +1 | +1 |
| Fly ash accuracy(%) | +1 | +1 | +1 | +1 |
| Additive accuracy(%) | +1 | +1 | +1 | +1 |
| Total power(KW) | 120 | 150 | 190 | 220 |
| Discharging height(mm) | 3800/4200 | 3800/4200 | 3800/4200 | 3800/4200 |
Our Products

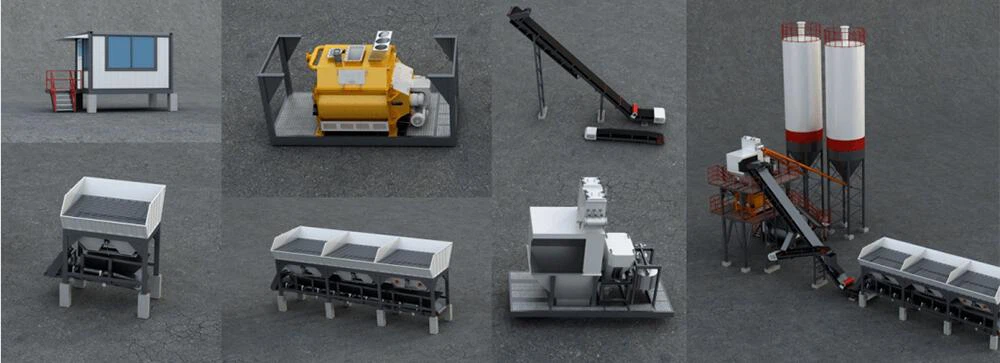

Modular design, reduce shipping costs and installation time
Adopt fine weighing system, automatic learning complement and buckle weighing
Digital Visual Management System to reduce staff
Our advantage of batch mix plant
Heavy duty chassis
Reduce shaking during work and achieve more accurate weighing
Finished product bin
Reduce discharging time and increase productivity by 15%
Pre installed pipeline
Galvanized pipes to reduce installation cycle
control system
Provide three-year free upgrade and support remote services
OUR FACTORY
Jinheng Machinery has two major production bases in Zhengzhou and Qingdao, with a production workshop of 350000 square meters. It has machining equipment such as sandblasting machines, laser CNC machine tools, drilling machines, automatic welding robots, and electronic CNC rolling machines.
As a reliable supplier to 1920 customers in the mixing industry, Jinheng Machinery combines European mixing technology and advanced design processes; We have designed over 20 concrete production lines, including a new generation of concrete mixing plants, mixing plants, and precast concrete mixing plants.
vision of the future
Building a high-quality manufacturer of green concrete mixing plants
mission
Using low-carbon concrete to create a better life for people
system of values
Gratitude, sharing, service, friendship, passion, positivity, and curiosity.
company philosophy
Integrity, exploration, innovation, breakthrough, and creation
Certifications
Create a comprehensive solution for efficient human theft manag
Certificate CE
Certificate CQC
Certificate ISO
Certificate SGS
Certificate PATENT
TRADEMARK
Our Partners
Red Star machine with a good reputation,excellent quality and sound after-sales service to win the world praise,in many domestic and foreign enterprises shine!
Why choose JHT?
We offer a variety of concrete batching plants
Rigorous production process
Raw material sandblasting and rust removal - laser cutting - strictly follow the drawings for production - one layer of primer and three layers of topcoat
High quality and low price
Cost accounting is based on the weight of raw materials (T/* USD), with a 3% service fee for purchased parts and free design
FAQ
01. Are you original manufacture?
02. What kind of payment can be accepted?
03. Do you provide equipment operation training?
04. What about the delivery time?
05. What about the warranty time?
06. What about the Minimum Order Quantity?
